Home / Duct Accessories / Hangers & Rods / Galvnised U-Strut

click to preview
Code: OCT-SSC 4/4



Ask a question

Unit Price: $67.50 per length
Quoted price excludes GST
FeaturesSpecificationsRelated Products

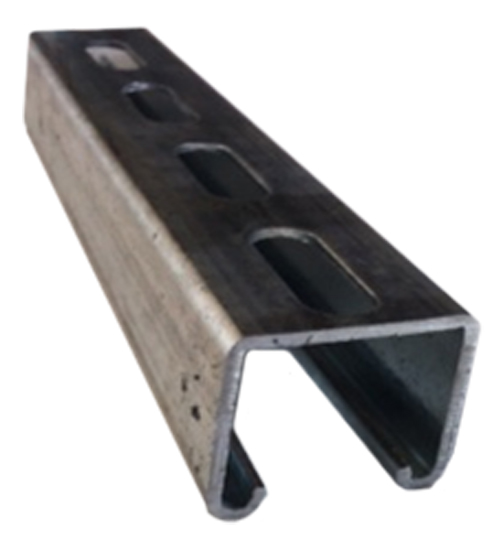

Hot Dip Galvanised u-strut suitable for supporting suspended ducting systems. Suitable for interior and exterior applications.

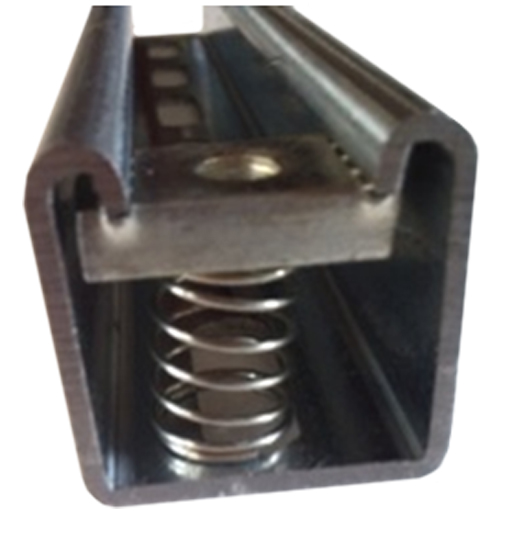

Compatible with OCT-SN-M10/L 10mm thraded zinc spring nut.

See technical specifications for load ratings.

Material: One piece 41mm x 41mm x 41mm x 5 meter hot dip galvanized (BS EN 10142 & 10143) 2.5mm formed mild steel

OCT-SSC 4/4 Uniform & Column Loadings:

Span (mm)Uniform Load at
175N/mm²		Deflection in mm
at 175N/mm²		Max Column
Load Kg
25016380.27166
5008191.051635
7505462.351557
10004094.181389
12503276.541211
15002737.411062
175023412.81941
200020416.73843
225018221.18761
250016326.15691
275014831.64631
300013637.65578


Notices

Photographs, pictures or graphics are indicative only.
Specifications subject to change without notice.
All prices exclude freight and GST and are subject to change without notice.
Availability subject to change without notice.
